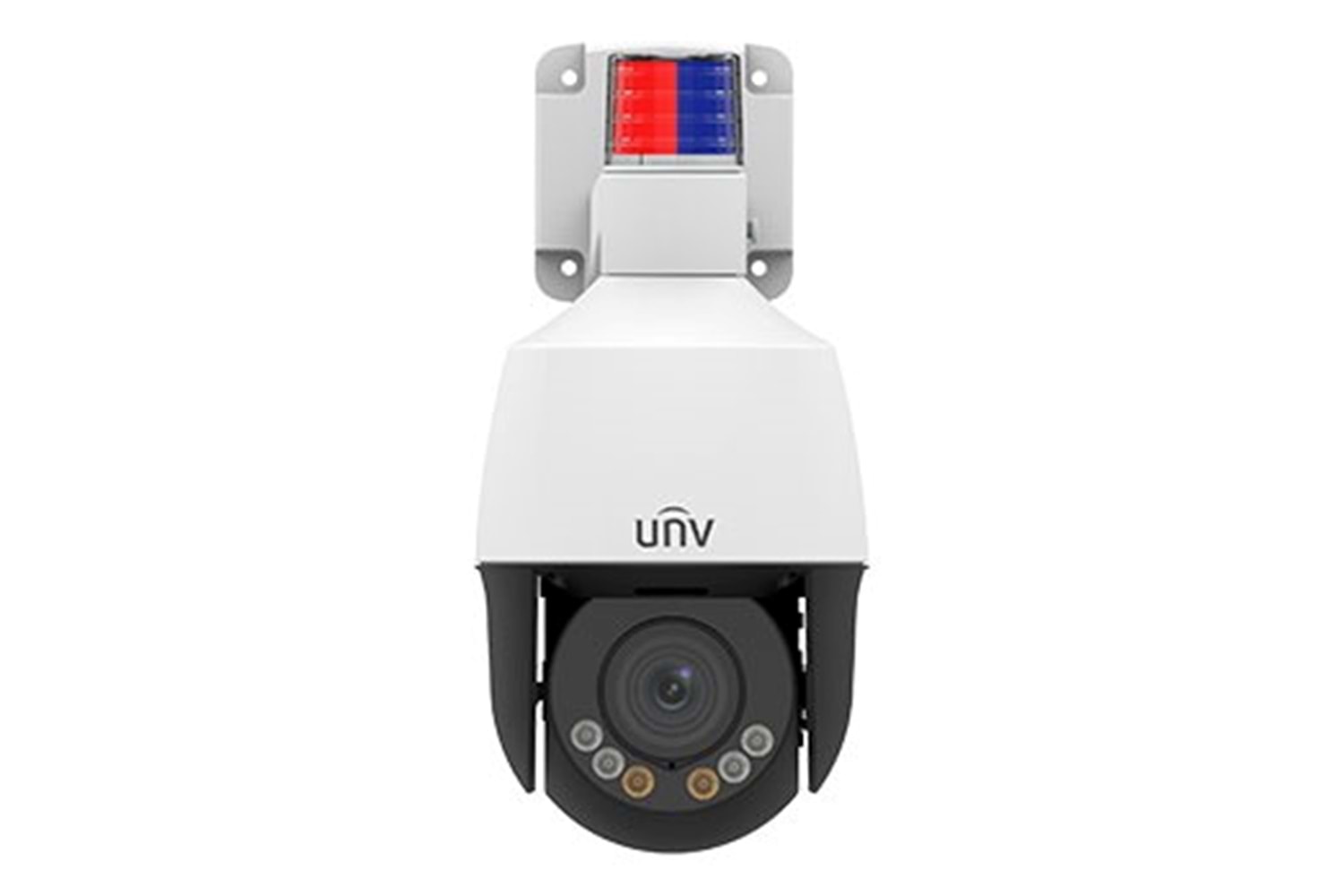

| IPC6312LFW-AX4C-VG |
| Camera |
| Sensor | 1/2.7" progressive scan, 2.0 megapixel, CMOS |
| Min. Illumination | Colour: 0.002Lux (F1.6, AGC ON)
0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s |
| WDR | 120dB |
| S/N | >52dB |
| Lens |
| Lens type | 2.8~12mm，AF automatic focusing and motorized zoom lens |
| Optical Zoom | 4 |
| Iris | Fixed; F1.6 |
| Field of View (H) | 105.2° ~ 29.32° |
| Field of View (V) | 52.6° ~ 16.38° |
| Field of View (D) | 108.7° ~ 33.3° |
| DORI |
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8mm | 43.4 (142.4ft) | 17.4 (57.1ft) | 8.7 (28.5ft) | 4.3 (14.1ft) |
| 12mm | 186.2 (610.9ft) | 74.5 (244.4ft) | 37.2 (122.1ft) | 18.6 (61.0ft) |
| Illuminator |
| IR Range | Up to 50m (164ft) |
| Warm Light Range | Up to 10m (33ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Image |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent |
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| People Counting | Support people flow counting and crowd density monitoring |
| Events |
| Basic Detection | Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking | Support |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio |
| Audio Compression | G.711U,G.711A |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Network |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation
EZLive
EZView |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt |
| Pan Range | 0° ~ 345° |
| Pan Speed | 0.1°/s ~ 50°/s |
| Preset speed: 50°/s |
| Tilt Range | -10° ~ 110° |
| Tilt Speed | 0.1°/s ~ 40°/s |
| Preset speed: 40°/s |
| Number of Presets | 256 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120s~1800s |
| Home Position | Support |
| Interface |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Alarm Light | Support |
| Certification |
| EMC | CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power | DC12V(±25%), PoE (IEEE 802.3af) |
| Power consumption: MAX 15W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Φ133mm*269mm (Φ5.2”x 10.6”) |
| Weight | 0.87 kg (1.92lb) |
| Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) |
| Storage Environment | -40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing) |
| Surge Protection | 2KV |
| Reset Button | Support |
