| Model | IPC3612LB-AF28K-DL |

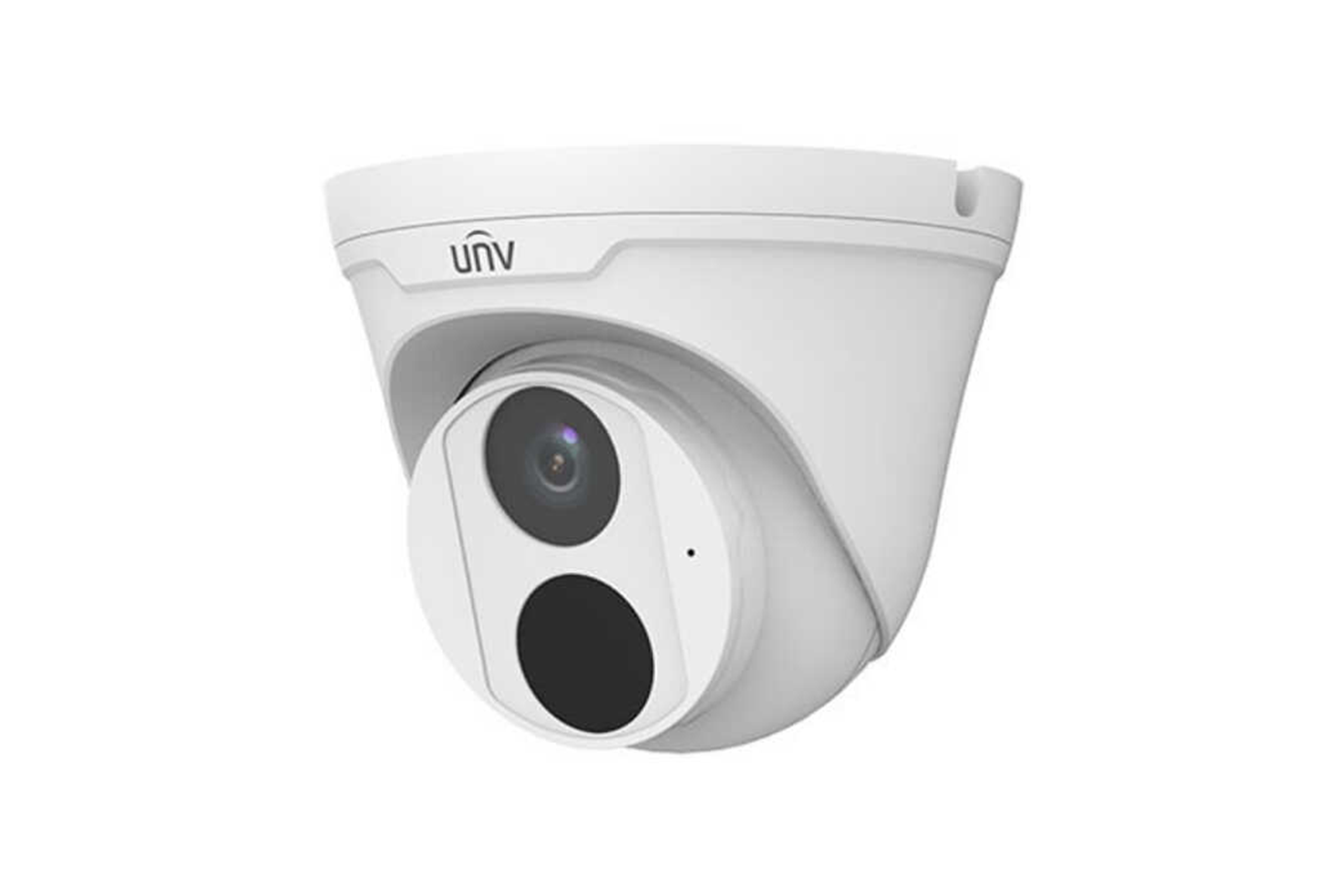

| Ürün Tipi | 2MP ColorHunter Fixed Dual-light Turret Network Camera |
| Maksimum Çözünürlük | 2 MP |
| Sensör | 1/2.9" CMOS |
| Minimum Aydınlatma | Color: 0.005 Lux (F1.6, AGC ON), light açıkken 0 Lux |
| Gündüz / Gece | IR-cut filter with auto switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000 s |
| Açı Ayarı | Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° |
| S/N | > 52 dB |
| WDR | DWDR |
| Lens | 2.8 mm sabit lens, F1.6 |
| Görüş Açısı | Yatay: 101.1°, Dikey: 55.0°, Diyagonal: 111.0° |
| DORI Mesafeleri | Detect: 45.0 m, Observe: 18.0 m, Recognize: 9.0 m, Identify: 4.5 m |
| Aydınlatma Tipi | Dual light |
| IR Mesafesi | 30 m |
| Warm Light Mesafesi | 30 m |
| Dalga Boyu | 850 nm |
| IR Kontrolü | Auto / Manual |
| Video Sıkıştırma | Ultra 265, H.265, H.264 |
| Frame Rate | Main Stream: 1080P (1920 × 1080) max. 30 fps; 720P (1280 × 720) max. 30 fps. Sub Stream: 640 × 360 / 2CIF / CIF max. 30 fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| Video Özellikleri | U-code (Main stream), OSD (4’e kadar), Privacy Mask (4 alana kadar), ROI, Dual streams |
| Görüntü İyileştirme | White Balance, 2D/3D DNR, Smart IR, HLC, BLC, Digital Defog, Flip seçenekleri |
| Temel Olaylar | Human body detection, Motion detection, Audio detection |
| Genel Fonksiyonlar | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Ses | G.711U, G.711A, 64 Kbps, 8 kHz, dahili mikrofon destekli |
| Depolama | MicroSD, maksimum 512 GB; Network Storage: ANR |
| Protokoller | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SNMP |
| Entegrasyon | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Kullanıcı / Host | 32 kullanıcıya kadar, 3 seviye: administrator, common user, operator |
| Güvenlik | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, TLS 1.2, WSSE, Basic ve Digest Authentication |
| İstemci Desteği | EZStation, APP |
| Web Tarayıcı | Plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free: Chrome 57+, Firefox 58+, Edge 16+ |
| Ağ Arayüzü | 1 × RJ45 10 M / 100 M Base-TX Ethernet |
| Koruma | IP67 |
| Besleme | DC 12 V±25%, PoE (IEEE 802.3af) |
| Maksimum Güç Tüketimi | 4.5 W |
| Güç Arayüzü | Ø5.5 mm coaxial power plug |
| Boyutlar | Ø118 mm × 98 mm |
| Ağırlık | 0.29 kg |
| Malzeme | Metal + Plastic |
| Çalışma Ortamı | -30 ℃ ~ 60 ℃, Nem: ≤ 95% RH (yoğuşmasız) |
| Depolama Ortamı | -30 ℃ ~ 60 ℃, Nem: ≤ 95% RH (yoğuşmasız) |
| Surge Protection | 4 KV |
| Reset Butonu | N/A |
| Sertifikalar | CE-EMC, FCC, CE LVD, UL/CUL, RoHS, WEEE, IP67 |
| Web Arayüz Dilleri | English, Russian, Spanish, Vietnamese |
