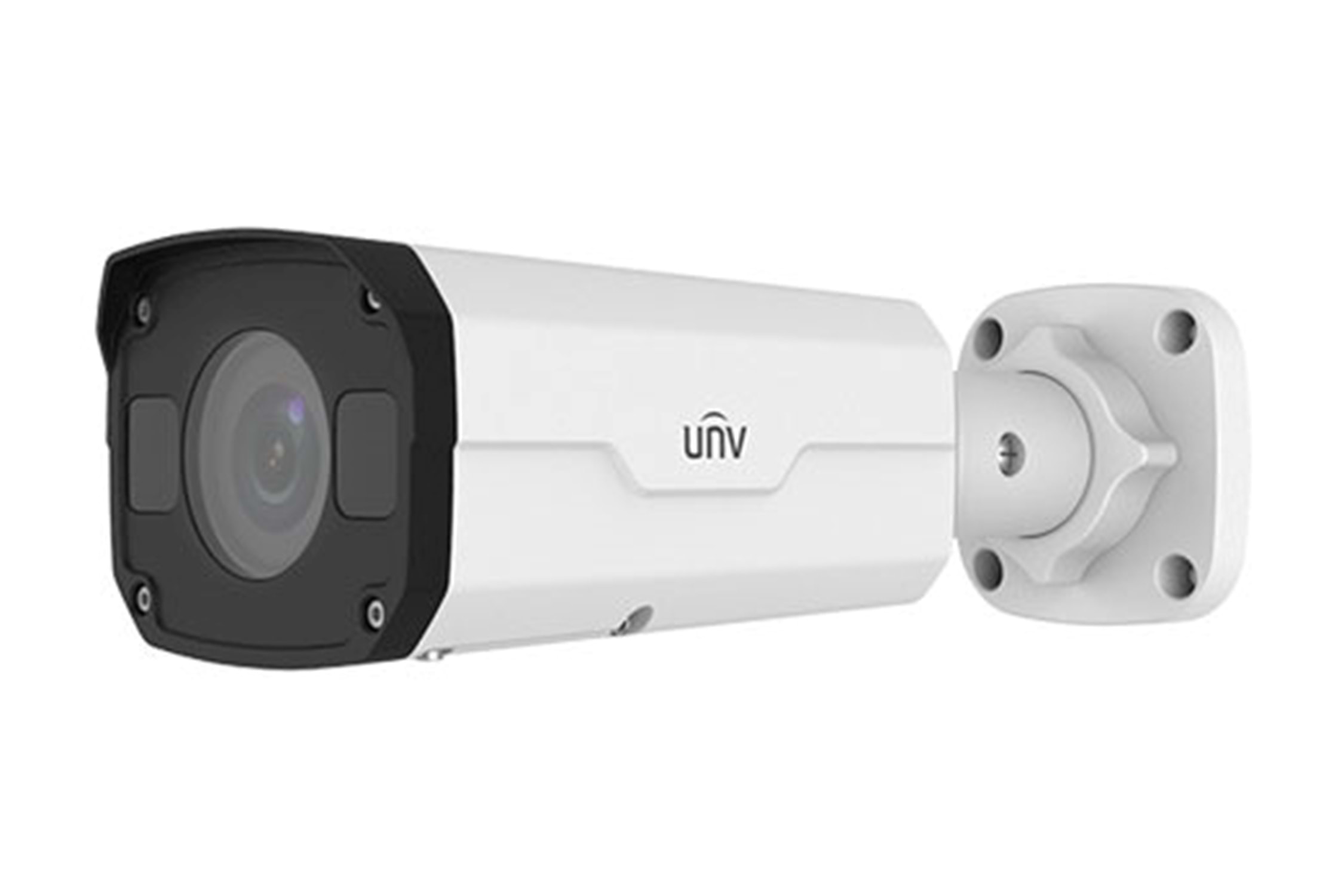

| Camera : IPC2324LBR3-SPZ28-D |
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens | 2.8~12 mm, motorized zoom lens | |
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.8mm | 63 | 25.2 | 12.6 | 6.3 |
| 12mm | 270 | 108 | 54 | 27 |
| Angle of View (H) | 91.0°~27° |
| Angle of View (V) | 54.4°~13.7° |
| Angle of View (O) | 118.3°~33.2° |
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate:0°~360° |
| Shutter | Auto/Manual, 1~1/100000 s |
| Minimum Illumination | Colour: 0.01 Lux (F1.6, AGC ON)
0 Lux with IR on |
| Digital noise reduction | 2D/3D DNR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| IR Range | Up to 30m (98 ft) IR range |
| WDR | DWDR |
| Video |
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile |
| Frame Rate | Main Stream:4MP (2048*1520): Max. 20fps;
Sub Stream:720P (1280*720): Max.20 fps;
Third Stream: D1 (704×576): Max.20fps |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| Network |
| Protocols | IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL |
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API |
| Interface |
| Network | 1 RJ45 100M Base-TX Ethernet |
| Edge Storage | MicroSD, up to 256GB |
| General |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 6.5W |
| Dimensions (L × W × H) | 240.3×86.4×75.6mm(9.46”×3.4”×2.98”) |
| Weight | 1kg（2.2lb） |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing) |
| Ingress Protection | IP67
|
